Ferrari SDX Tester Diagnostic System Tools

€6,800.00

Compare
Categories: ,

Ferrari Maserati SDX Diagnosis System Ferrari Maserati SD2 SD3 SDX DEIS Diagnostic Tester

The SDX Diagnosis System is a tool bringing together all Four of the diagnostic systems produced by Ferrari Maserati S.p.A. (SD1+SD2+SD3+DEIS) in a single instrument for the electronic diagnosis of vehicles the Ferrari.

Description



Ferrari SDX Tester Diagnostic System Tools



Ferrari SDX Tester Diagnostic System Tools

This tool replaces the SD-1, 2 and 3….and even offers support for cars as new as the 612. Although we “loved” the quirkiness of the SD-2, we really needed more (newer) vehicle coverage and more stable connectivity.

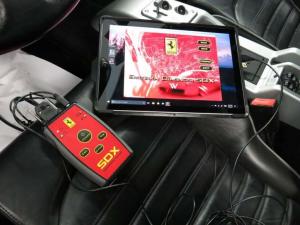

The SDX will run on a modern Windows 10 platform. We’ve got ours set up to run on a Surface Pro 4, which makes it very convenient to use “in vehicle.” A few shots of the set-up as we perform clutch diagnostics on a 360.

The SDX Diagnosis System is a tool bringing together all Four of the diagnostic systems produced by Ferrari Maserati S.p.A. (SD1+SD2+SD3+DEIS) in a single instrument for the electronic diagnosis of vehicles the Ferrari.

The system consists of an interface (VCI) that may be linked to a PC running Windows XP or later Windows operating system with at least 500 Mb free hard disc space and 2 Gb RAM.

The VCI, which is equipped with its own battery and may be powered from the vehicle electrical system (12V DC) or from the PC via the USB connection, has a set of buttons for selecting functions on the PC (primarily in SD2 mode).

The main programme installed on the PC features a management menu allowing selection of the SD1+SD2 application (SD2 look) or the SD3 DEIS application (new look).

CASE:

The system comes in a plastic carrying case, complete with wiring needed for diagnosis and links to the PC.

The kit consists of:

  • Diagnosis Tester SDX
  • USB cable for PC connection
  • CrossOver Ethernet cable
  • ABS case
  • CD/Manual
  • Cord “octopus” to cars without EOBD
  • Cable for “octopus” Tester
  • N. 2 extensions ISO
  • Power cable for Car Battery
  • Power cable for cigarette lighter

Tool warranty period is 3 years. We also provide long-term technical service support.
