Description

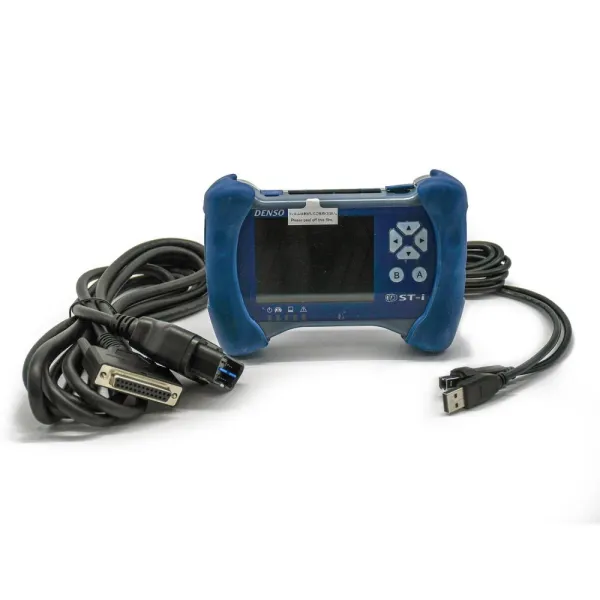

OEM HONDA DENSO DST-I VEHICLE COMMUNICATION INTERFACE
Honda DST-i Workshop Pro Package Overview
Product Specifications
CPU: 32-bit RISC microcomputer
Dimensions: 160 mm W x 110 mm H x 45 mm D
External Interface- DC Jack: Option port for function expansion
External Interface- SD Memory Card: Slot x 1 (supporting SC and SDHC memory cards)
External Interface- Vehicle Communication: ISO9141, CAN, P-Line, Diag-X, Diag-H, SCS, WEN
External Interface- Wireless LAN: IEEE802.11b / IEEE802.11g / IEEE802.11n (24 GHz band) compliant
Input Device – Operation Keys: 6 keys
LCD Display Color: Max. 260000 colors
LCD Resolution: QVGA (320 x 240 dots)
LCD Size: 3.5″ TFT color LCD
Memory- Built in Flash ROM: 16 MB
Memory- SDRAM: 16 MB
Memory-EEPROM: 32 KB
Operating Humidity: 10 to 90% (No condensation)
Operating Temperature [Storage Temperature]: 0 to 50°C [-20 to 70°C]
Power Consumption: Normally 1.5 W (12 VDC), Max. 2.5 W (12 VDC)
USB Power (BUS power): DC 4.75 to 5.25 V
Vehicle Power Supply: DC 6.8 to 32V (Datalink cable) (36 V:within one hour)
Weight: Approx.350

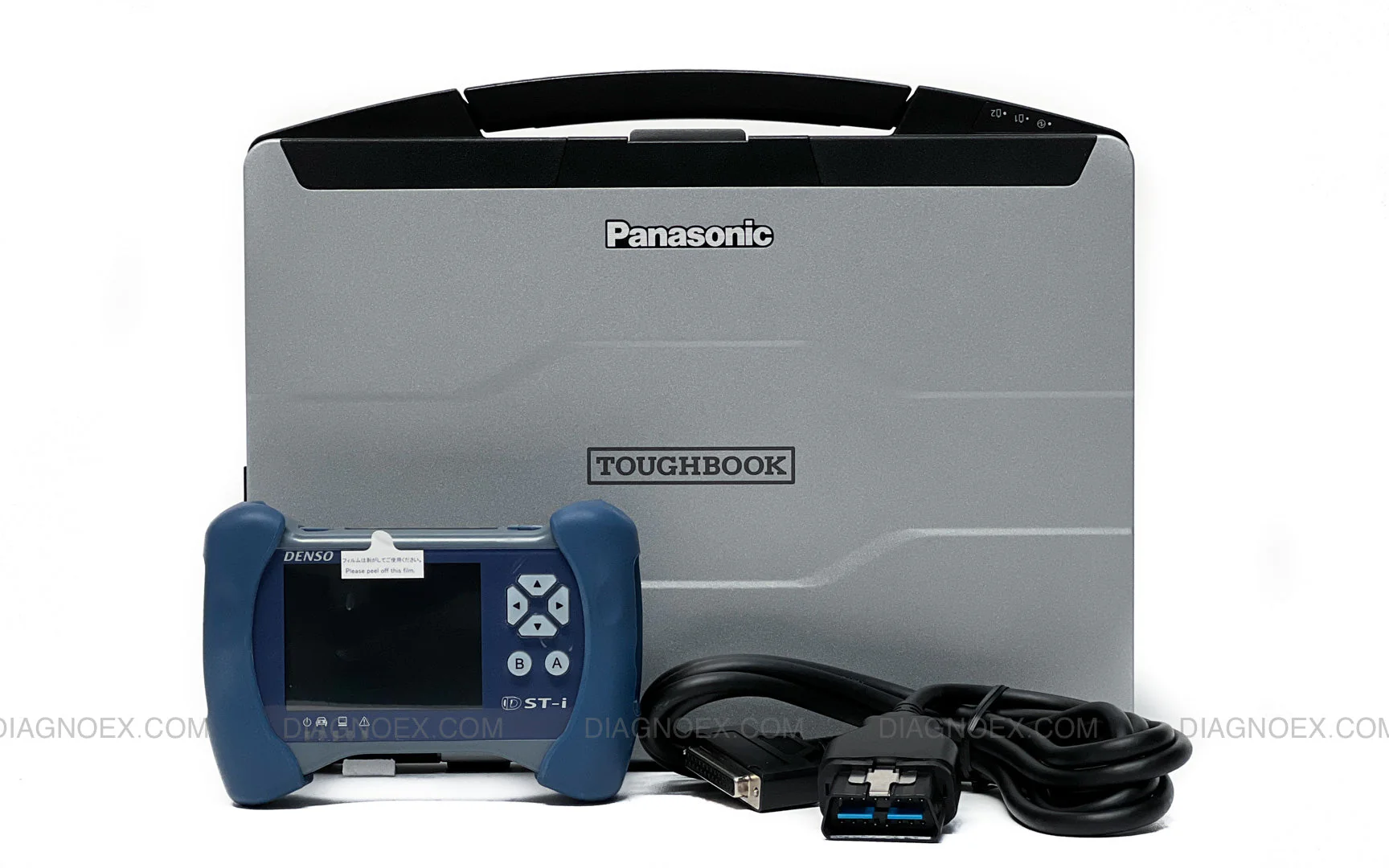

Honda DST-i Vehicle Communication Interface works with Honda i-HDS Honda Diagnostic System software. The interface manufactured by Denso Japan is used in Honda, Acura dealerships as a dealer interface. The DST-I connects to a PC for use with HDS and iHDS software for diagnostic and programming Honda and Acura vehicles. It has a memory card to store flash programming files.
Manufacturer: DENSO
MADE IN JAPAN
HONDA DST-I OVERVIEW
Features
- Fast wireless communication with high speed networks (b, g, and n)
- Smaller, ergonomic design with illuminated buttons
- 50% lighter than the previous pass-through interface, 0.77 lbs. (350g) vs 1.50 lbs. (680g)
DST-i Part Number
3 Meter DLC Cable : DSCDLCCABL
3 Meter USB Cable : DSCUSBCBLWSP
USB Cable Lock : DSCUSBLOCK
USB Cable Spacer : DSCUSBSPAC
SD Card : DSCSDCARD
Tool Case : DSCCASE

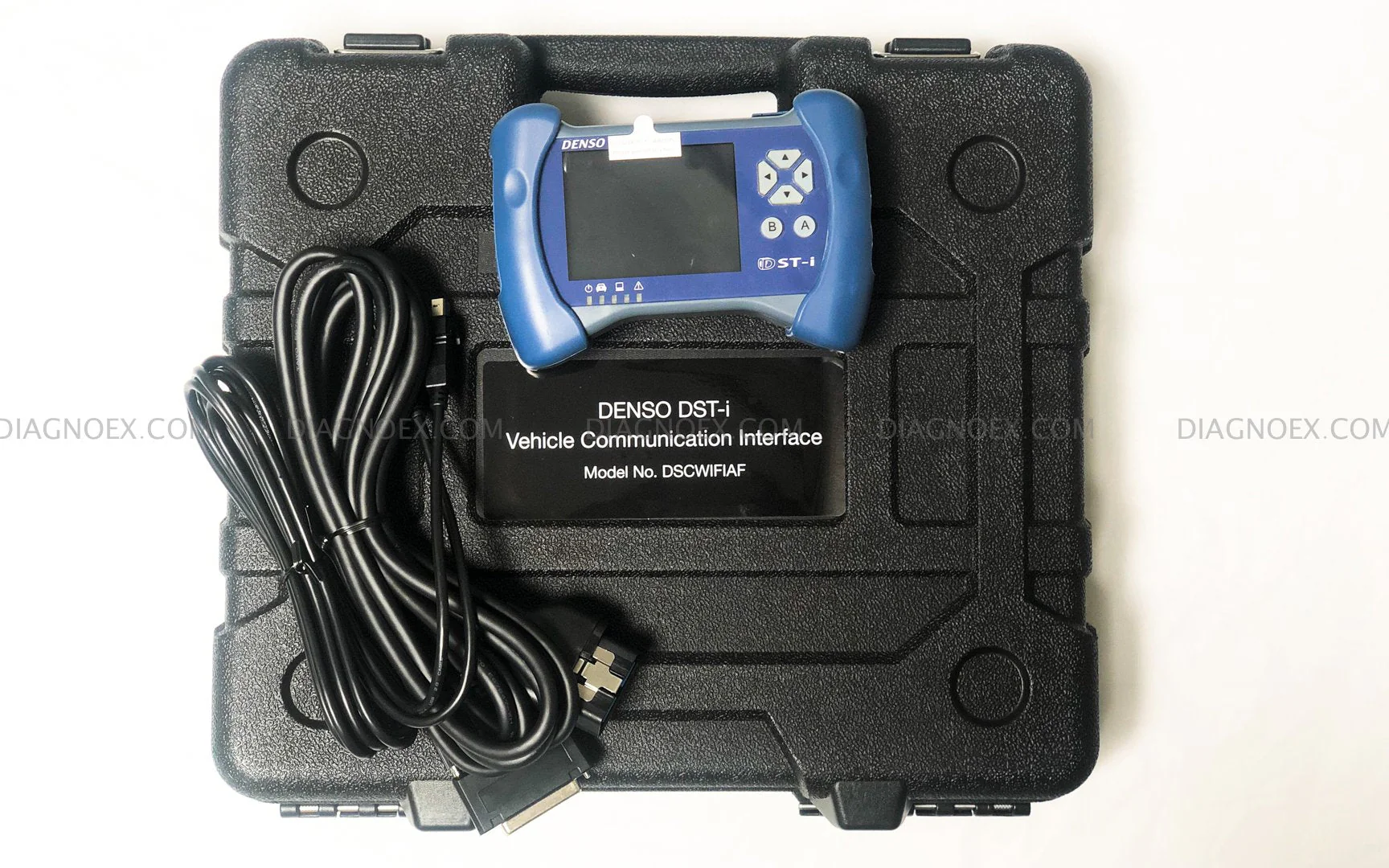

What’s in the box
3 Meter DLC Cable
3 Meter USB Cable
USB Cable Lock
USB Cable Spacer
SD Card
Tool Case
**Warranty**
DST-i tool is warranted to be free from defects in material and workmanship for a period of two (2) years from date of purchase. The SD Card is warranted to be free from defects in material workmanship for a period of one (1) year from date of purchase. Each cable product is sold without warranty.
