BOSCH KTS 590 DIAGNOSTIC UNIT
Description

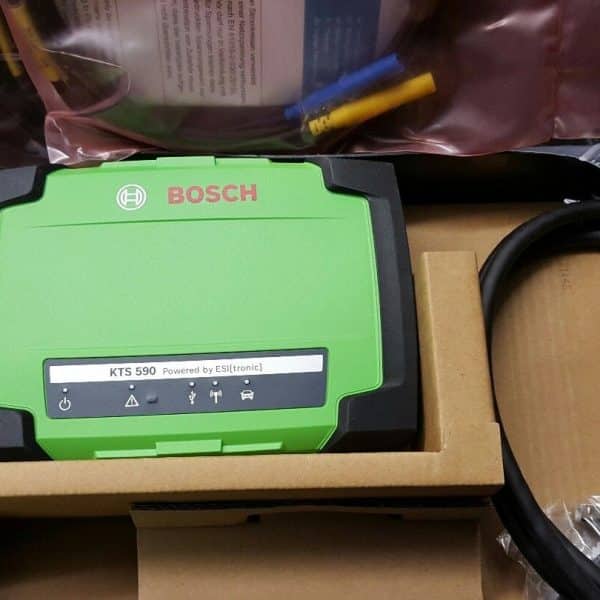

The Bosch KTS 590
(Esi Software Included)
- Integrated dual-channel oscilloscope: Use the real-time view of electrical signal fluctuations for very precise testing of complex electrical systems.
- Integrated two-channel multimeter: Quickly find and fix electrical problems
- Fully compatible with PassThru: Call up and reprogram the software of the vehicle manufacturer’s control unit for efficient everyday life in the workshop.
- Parallel diagnostics: The module can communicate simultaneously with up to three CAN and K-Line interfaces and enable fast and productive diagnostics.
- Bluetooth connection with a range of 100 m: Very practical – increase the range of your workshop and thus your productivity
- Supports Bosch Easy Connect and other Bosch vehicle-specific adapters: Easily expand diagnostic capacities with a range of vehicle manufacturer-specific non-OBD cables
- Ideal for ESI[tronic] 2.0 Online Software (sold separately): Intelligent system information, troubleshooting and support for quick repairs and maintenance
- Runs on all Windows PCs on which ESI[tronic] 2.0 Online has been installed and licensed: Remote options to control diagnostics and repair in your workshop.
Product information.
- Supports “Easy Connect” and other Bosch vehicle specific adapters
- Enhanced measurement technique included to support diagnosis and vehicle repair
- Enhanced ECU diagnosis for DoIP (Diagnostics over Internet Protocol) the first product in IAM with this feature
- Parallel or simultaneous diagnosis possible for a faster overview and reading of values
- LED display
- Measuring all actuators and sensors in the vehicle
- Multimeter measurements during guided trouble-shooting with automatic transfer of measured values
- Both oscilloscope channels are isolated
- Sampling rate: 20MS/s
- Intelligent and future-proof thanks to internal OBD interchangeable adaptor
- Universal OBD plug: Allows connectivity to vehicles with 14 V and 28 V vehicle electrical systems
- Clear communication thanks to multiplexer and cable adaptor recognition: K and L line, SAE and CAN can be switched to all possible terminals on the OBD plug
- Reliable multiplexer actuation
- Automatic control unit search function
- Integrated OBD interchangeable adaptor
- Demo mode allows the 590 to be used without a vehicle connected
- Resistance measurement with extended measuring ranges
- Continuity tester for fault localisation
- Diode measurement for component testing
- Voltage measurement with enhanced measurement functions
- Bluetooth Class 1 standard with a range of up to 100 m
- Fully Passthru compliant
- Operating systems: Vista Home Premium, Vista Business, Windows 7, Windows 8
- Powered by ESI[tronic] 2.0
- 2-channel multimeter & 2-channel oscilloscope
KTS 590: Zweikanal-Multimeter und Zweikanal-Oszilloskop
PC-Verbindungen: USB 2.0, Bluetooth® Klasse 1
Gewicht: Etwa 0,5 kg
Betriebsspannung: 8 V DC-28 V DC
Stromverbrauch über Fahrzeugbatterie oder Netzstrom: < 10 Watt
Staub- und Wasserschutz: IP53
Bandbreite des Multimeters: 100 kHz
Samplingrate des Oszilloskops: 20 MS/s
Fahrzeugprotokolle: ISO 15031, ISO 22900,
SAE J2534-1 und -2
(PassThru), ISO 9141-2
(K und L), SAE J1850
VPW und PWM,
CAN High Speed ISO 11898,
ISO 15765-4 (OBD), CAN Single Wire, CAN
SAE J2534-1 und -2
(PassThru), ISO 9141-2
(K und L), SAE J1850
VPW und PWM,
CAN High Speed ISO 11898,
ISO 15765-4 (OBD), CAN Single Wire, CAN
Low Speed, ISO 13400: (Diagnose über IP),
und andere fahrzeugspezifische: Protokolle
und andere fahrzeugspezifische: Protokolle
Abmessungen (B x H x T): 125 x 44 x 180 mm
Betriebstemperatur: 5 °C bis 40 °C
Scope of delivery
-OBD connection cable (1.5 m)
-Power supply unit

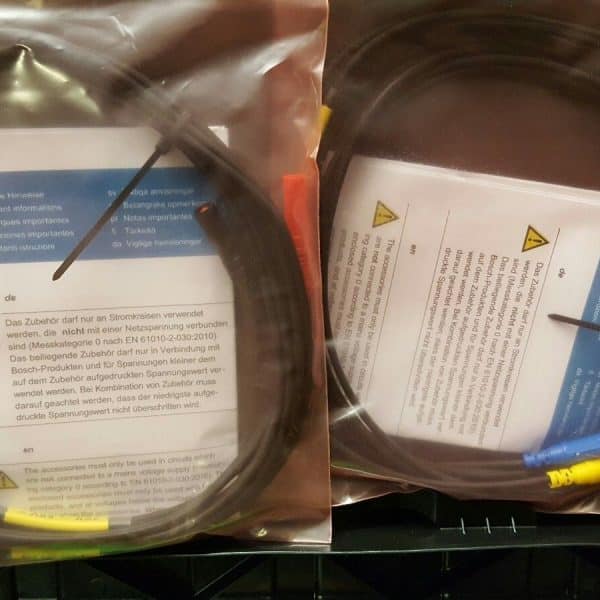

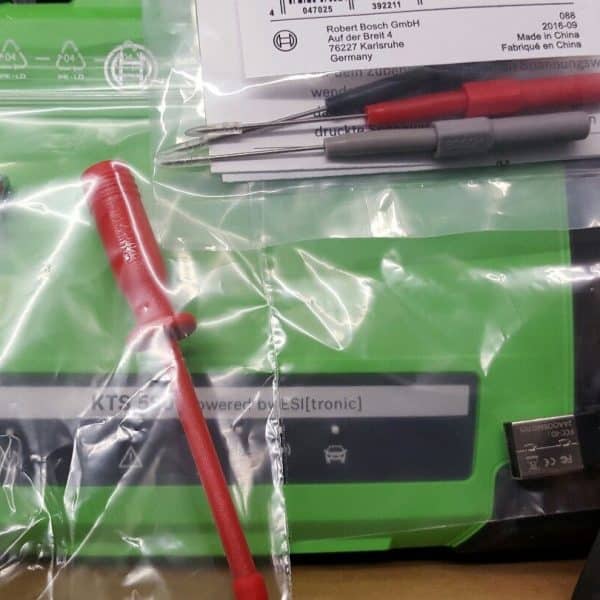

-Test lead/probe set
-USB connecting cable (3 m)
-Trolley mounting parts set
-Bluetooth® USB adaptor

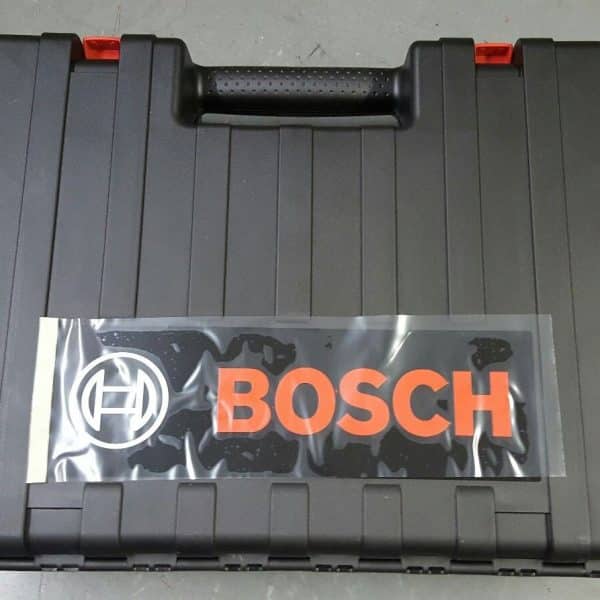

-Storage case
Price is for the hardware only
Software
Is available for 12 months and 36 months periods get in touch for current pricing……
Adapter cable “EasyConnect” for certain vehicles
| Adapter cable Mercedes Benz 14-pin (Sprinter, Atego) | 1 684 463 594 |
| Adapter cable VW/Audi | 1 684 463 611 |
| Adapter cable Fiat Group 3-pin | 1 684 463 613 |
| Adapter cable BMW 20-pin | 1 684 463 631 |
| Adapter cable Daewoo/GM/Holden 12-pin | 1 684 463 632 |
| Adapter cable Honda 3-pin and 5-pin | 1 684 463 634 |
| Adapter cable KIA 20-pin | 1 684 463 636 |
| Adapter cable Mazda 25-pin | 1 684 463 637 |
| Adapter cable Hyundai/Mitsubishi 12-pin | 1 684 463 638 |
| Adapter cable Nissan 14-pin | 1 684 463 639 |
| Adapter cable Suzuki 6-pin | 1 684 463 641 |
| Adapter cable Toyota 17-pin | 1 684 463 642 |
| Adapter cable Toyota 23-pin | 1 684 463 643 |
| Adapter cable Renault 12-pin | 1 684 465 582 |
Adapter cable for certain vehicles with banana plug (Uni-4 Adapter 1 684 463 539 required)
| Adapter Mercedes-Benz 38-pin | 1 684 485 382 |
| Adapter cable PSA 2-pin | 1 684 460 181 |
| Adapter cable for Storm (connection to the cigarette lighter) | 1 684 460 202 |
| Adapter cable Opel, Vauxhall Multec | 1 684 463 410 |
| Adapter cable Rover | 1 684 463 439 |
| Adapter cable Ford | 1 684 463 440 |
| Adapter cable Daewoo with strength adjustment to 5V | 1 684 463 495 |
| Adapter cable MAN 37-pin (EDC, MS5) | 1 684 463 498 |
| Adapter cable MAN 12-pin (EDC, MS 6.1, MS 6.4 CR, EDC 7C) | 1 684 463 499 |
