Original Bosch VCI MTS 6534 Diagnostic Device Tool

€1,500.00

Compare
Categories: , ,

MTS-6534 BOSCH is used by professional technicians as an aid in diagnosing and repairing automotive electrical and electronic systems. Original VCI (No Chaines fake)

Description

Original Bosch VCI MTS 6534 Diagnostic Device Tool



The Bosch VCI MTS 6534 offers flexibility for current vehicle architectures including DoIP and CAN-FD.

This interface sets the industry benchmark for J2534 VCI pass-through performance with its fast processor, optimized software structure, and faster boot-up. The software also facilitates reliable strategies for securely reprogramming immobilizer systems.

Has support for DoIP (diagnostics over IP), CAN FD (CAN with flexible data rate) and three independent CAN controllers let the MTS 6531 support the latest, most advanced vehicle electrical architectures, including support for 24-volt systems used in light and heavy trucks.

Used by professional technicians as an aid in diagnosing and repairing automotive electrical and electronic systems.

USER INTERFACE

LED 4 LED’s – two LED’s are triple color

Audio Beeper (software frequency controlled)

Switch Recovery switch (for restoration of fail-safe software)

POWER

Vehicle From vehicle battery via DLC

External USB power

MECHANICAL CHARACTERISTICS

Size 171mm x 118mm x 41mm

Weight 240 grams

POWER SUPPLY

From the vehicle battery using the diagnosis connection cable

or from the PC using a connected USB cable.

Caution:

The diagnostic connector of the vehicle must be protected

by a fuse with a max. rating of 6 amps / 32 volts. 8 V to 28 V

Power Supply 750 mA

Operating Temperature -20 °C – +70 °C

Storage Temperature -40 °C – +80 °C

Humidity at 25 °C 30% – 95%

Maximum operating altitude 4000 m

Degree of protection with the diagnostic connection cable

not connected IP30

Degree of protection with the diagnostic connection cable

connected according to IEC 60529 IP 54, cat. 2

Degree of contamination 2

DIAGNOSIS CONNECTION CABLE J1962 (ISO 15031-3)

Voltage resistance DLC 26 Pin 18 V, CAT 0

Wired USB High-Speed Client Port(480 Mbps)

Wireless 802.11b/g/n on USB Dongle Bluetooth Version 2.0 EDR on USB Dongle

PROCESSOR SYSTEM Microprocessor

  • Type I.MX6 Processor Clock Speed 800 MHz
  • RAM SDRAM: 1 Gbyte
  • DDR3: ROM NAND
  • Flash: 512 Mbytes ​Mass Storage 8 Gbytes Micro SD Card
  • USER INTERFACE LED 4 LEDs – two LEDs are triple color Audio Beeper (software frequency controlled) Switch Recovery switch (for restoration of fail-safe software)
  • POWER Vehicle From vehicle battery via DLC External USB power
  • MECHANICAL CHARACTERISTICS
  • Size 171mm x 118mm x 41mm
  • Weight 240 grams

POWER SUPPLY

From the vehicle battery using the diagnosis connection cable or from the PC using a connected USB cable.

Caution: The diagnostic connector of the vehicle must be protected by a fuse with a max. rating of 6 amps / 32 volts. 8 V to 28 V

  • Power Supply 750 mA
  • Operating Temperature -20 °C – +70 °C
  • Storage Temperature -40 °C – +80 °C
  • Humidity at 25 °C 30% – 95%
  • Maximum operating altitude 4000 m

Degree of protection with the diagnostic connection cable not connected IP30 Degree of protection with the diagnostic connection cable connected according to IEC 60529 IP 54, cat. 2 Degree of contamination 2 DIAGNOSIS CONNECTION CABLE J1962 (ISO 15031-3) Voltage resistance DLC 26 Pin 18 V, CAT 0

MTS-6534 VI3 Package Include

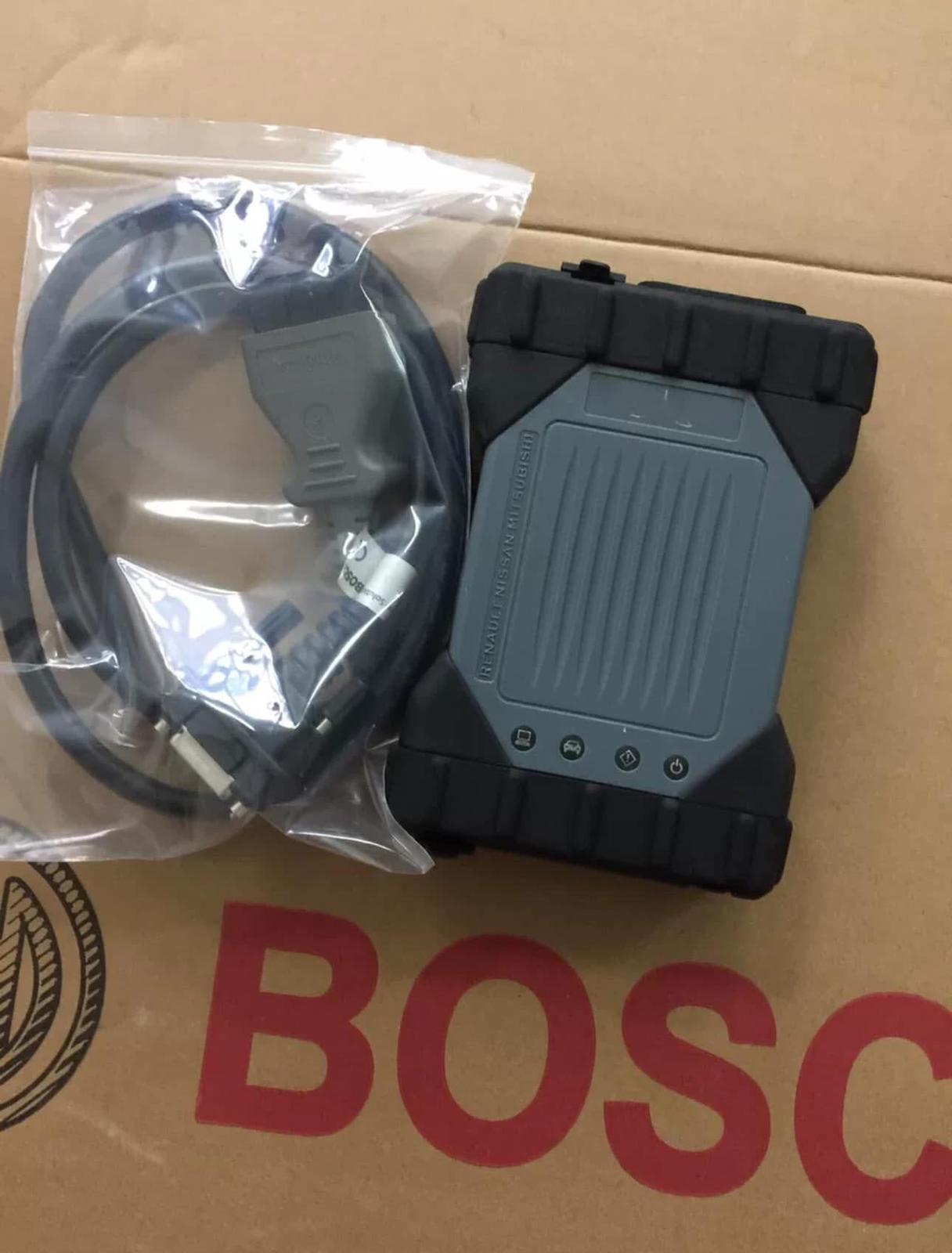

  • 1 x MTS-6534 VCI Alliance Unit
  • 2 x Wi-Fi Dongles USB
  • 1 x 3m Rugged USB Cable
  • 1 x 2m 16 Pin DLC Cable
  • 1 x Instructions & Quick Start Guide
  • ​1 x USB RNM VCI Manager Vehicle Interface
