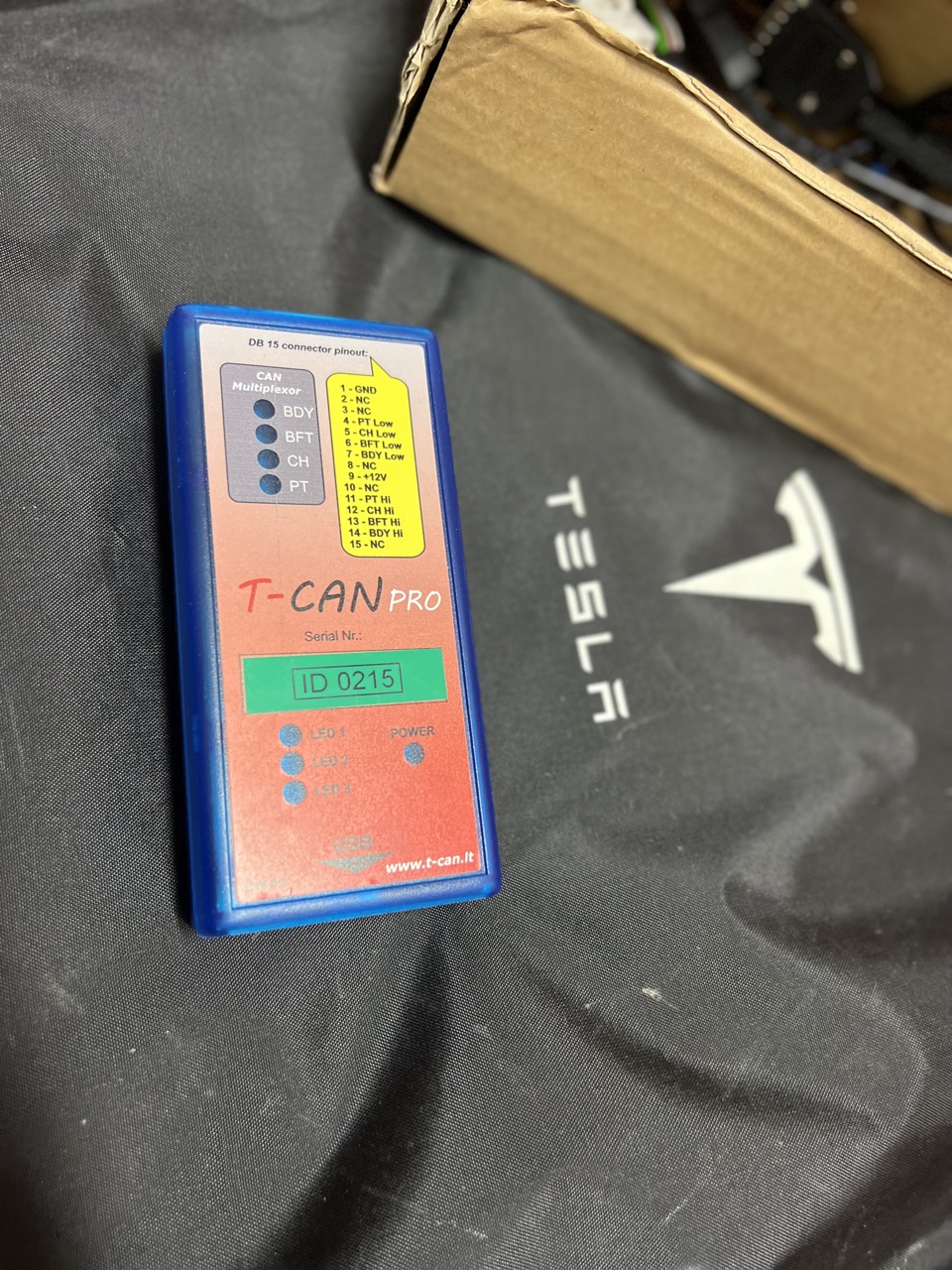

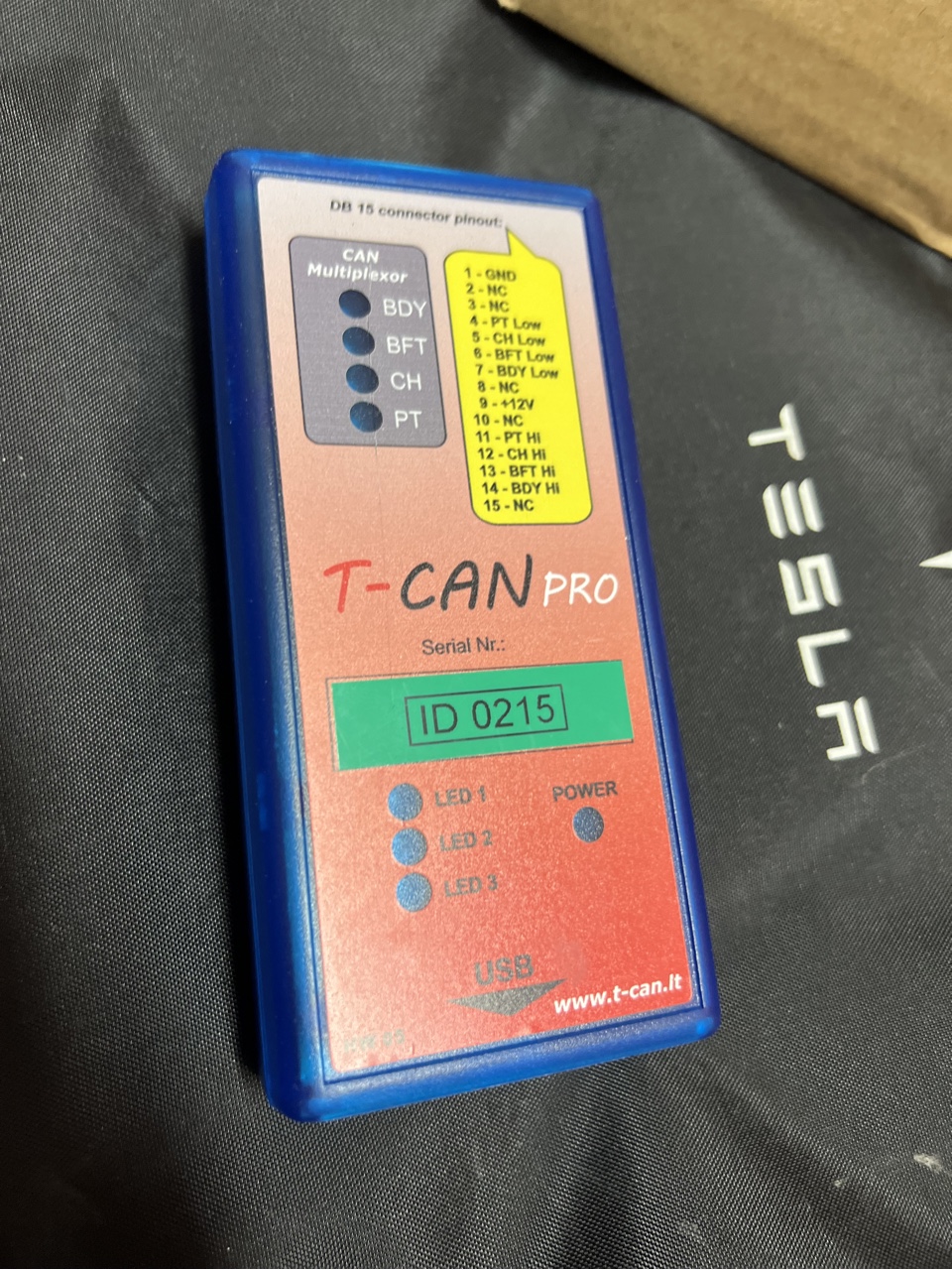

T-CAN PRO diagnostic software and hardware with small box interface. Can help you solve many problems with the TESLA car “Model S, X”.

Multi-Language: English
Operating systems: Windows 7, Windows 10
System updates: Available
Internet connections: Available
Warranty: 12 months

User manual 2020.04.16 – download

T-CAN PRO can work with ECU TESLA Model S,X

Software can access only Patreon members.

• 2024.12.09 – BMS odometer simulation by CAN
• 2024.11.14 – BMS cells voltages and temperature read by CAN
• 2023.05.18 – updates only by subscription on Patreon.
• 2021.09.29-Last updated HW 06 and  SW.
• 2021.04.07-Radar Continental learning and calibration.
• 2021.04.06-BMS updated 027 clearing procedure for all versions.
• 2020.11.16 – Beta Battery Energy data reading by can, factory mode (updated).
• 2020.11.05 – Global DTC decoding codes update.
• 2020.10.26 – some Lan functions added.(wakeup, pin to drive, park dtc base)
• 2020.10.23 – CID commands Service and Factory Redeploy,
• 2020.10.22 – real time by can level measure of TAS (EAS) Beta.(add some DTC base)
• 2020.09.25 – BMS contactor replacement procedure reset u019
• 2020.09.24 – m3 SDM read, erase DTC by can.
• 2020.09.21 last update.(Diag, Develop, FMODE by IC, Valet by LAN)
• 2019.05.23 NEW SDM by BOSH  Module X and 3 model (read, clear fault codes and R/W EEPROM clear CRASH log.)
• ALERTS – Alerts on CAN bus (read  alerts codes updated BMS 2019.09.14 BETA STAGE !)
• BDY – Body controller on CAN bus
• DH – Door Handles – Learn Front Driver Side – CAN BDY -125 kbps (BETA Stage – added 15.07.2022)
• SDM – Supplemental Deployment Module S model (read, clear fault codes, clear  CRASH log by Boot mode pin.)
• SDM by BOSH  Module X and 3 model (read, clear fault codes and R/W EEPROM clear CRASH log.)
  • SEC – Security controller (Add Keyfob Key)
  • PARK2 – Partonic sensors (read and decode fault codes, erase stored fault codes) supported until 06.2016
  • THC – Thermal controller (Air purge function)
  • EAS – Electronic Air-suspension System (read, decode, erase fault codes, exit service mode ) supported until 06.2016
  • TAS – Tesla Air-suspension System (erase fault codes ,clear Crash event, exit service mode ) after 06.2016
  • BMS – Battery control Module (reset alert warnings w163,w026,w152,w153,w023,read soft pack)
  • TPMS – Tyre Pressure (read sensor ID stored in memory it use full if you need to make new non tesla sensor)
  • ESP – Electronic stability system (read and decode fault codes, erase stored fault codes)

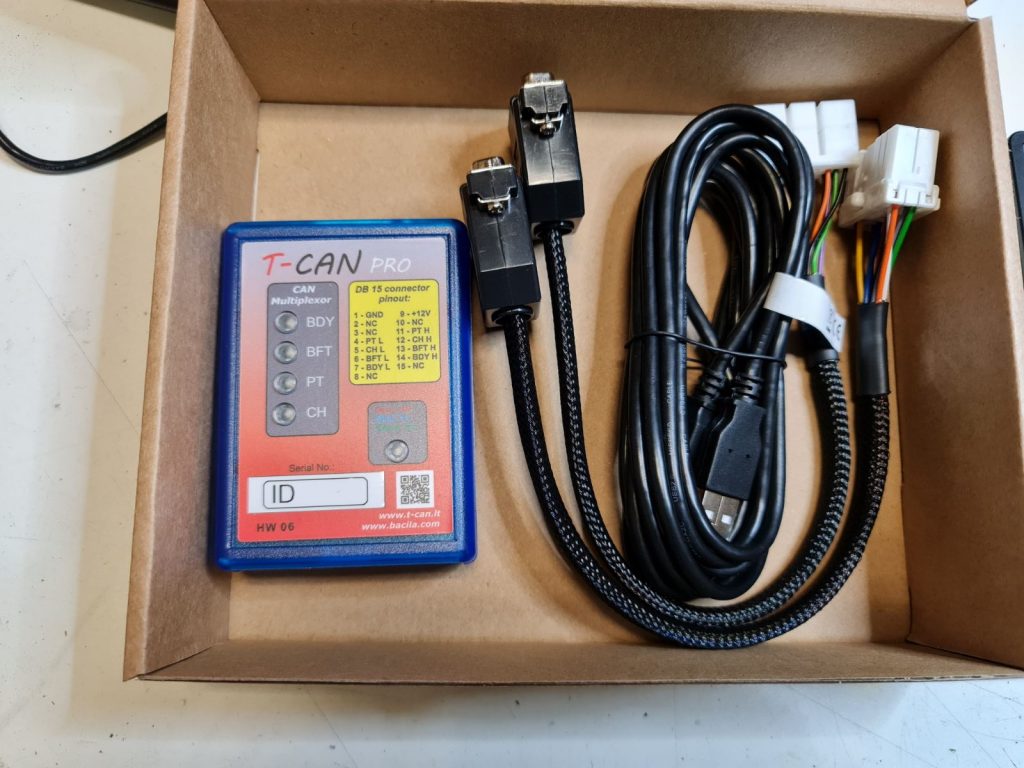

•      What You get  in box ?

What You get  in box ?

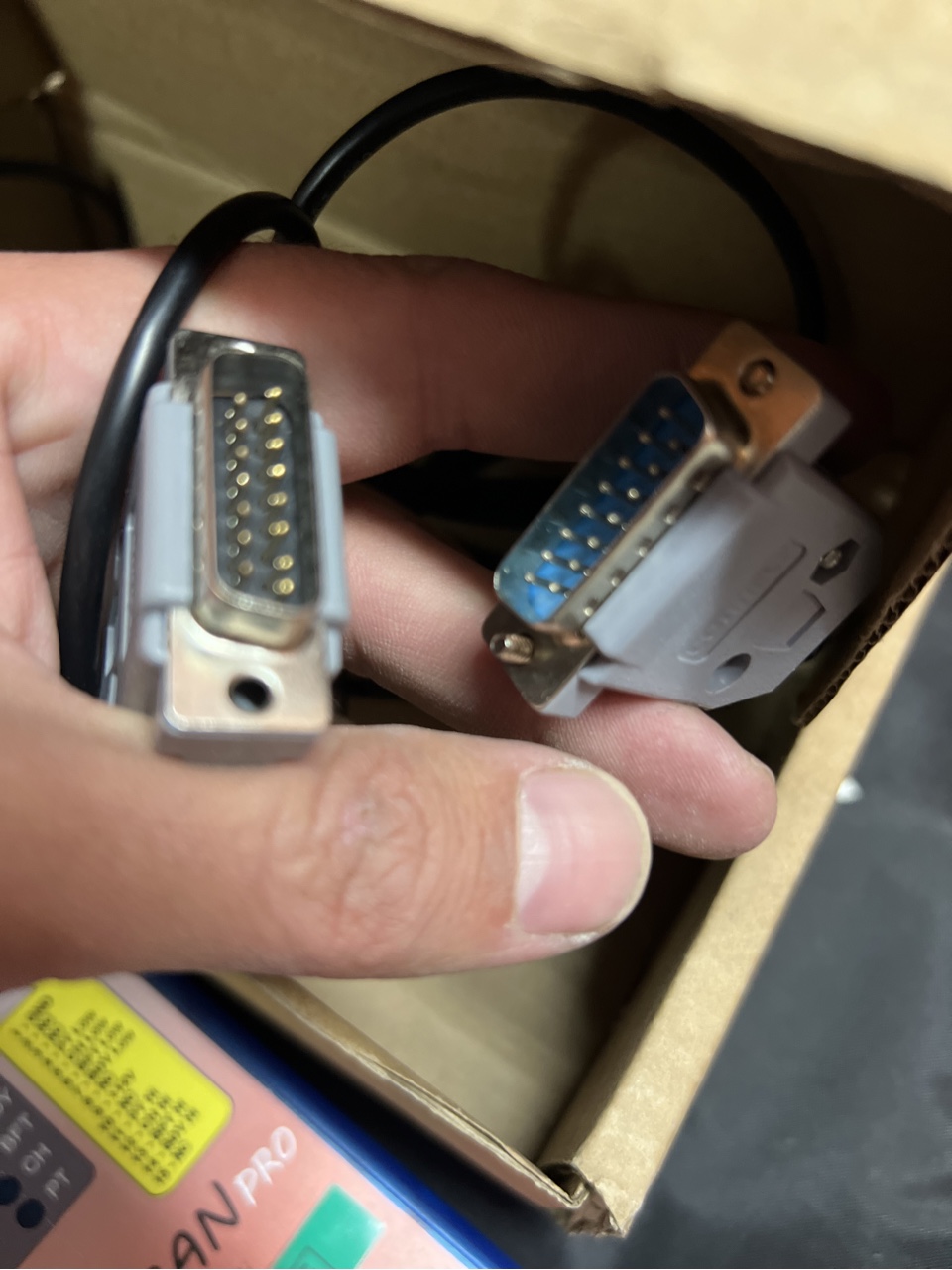

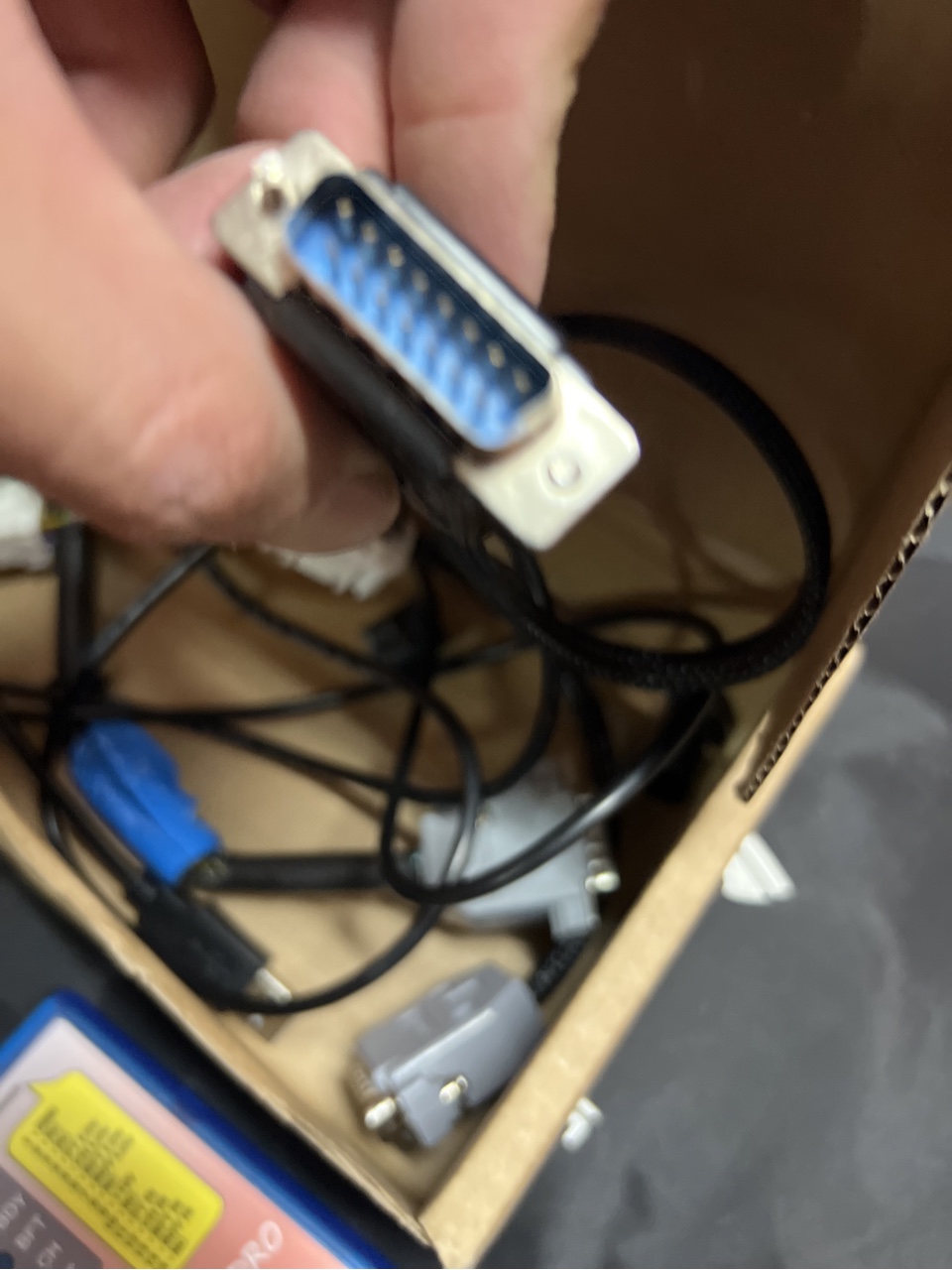

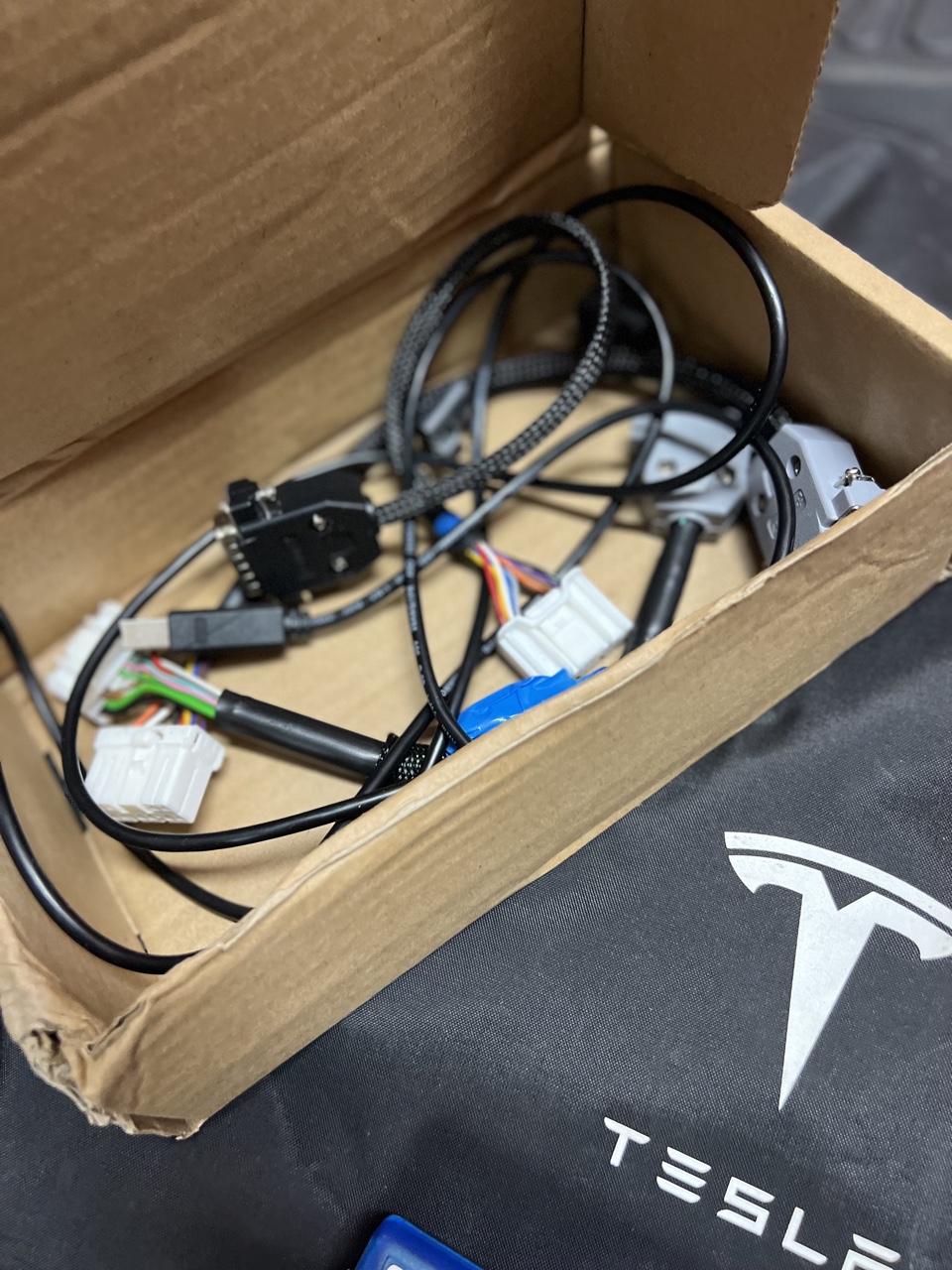

New V06 interface box no need support 12v, adapter x437 (2012-2016.04),adapter x437a(2016.04-2021.06) and USB cable

For order you can contact by email: sales@adtools.eu.com or ask distributor

Distributor in Europe-Germany

Have in stock: WhatsApp: +49 178 4850711

————————————————-WARNING————————————————————–

BE ATTENTION !!! CHINA SELLING NOT ORIGINAL DEVICE WITH OLD VERSION AND NO SUPPORT.

like TSLA PRO and others like in picture NO SUPPORT, NO UPDATES do not ask for HELP.

——————————————————————————————————————————-
