TEXA Navigator TXT Multi-Hub 2

€2,300.00

Compare
Categories: , Brand:

Universal diagnostic interface for cars, trucks, powersports, marine, and more with auto-protocol switching and rugged build.

Description

TEXA Navigator TXT Multi-Hub 2



Multi-Environment Vehicle Interface for Modern Diagnostics

The TEXA Navigator TXT MULTIHUB 2 is a cutting-edge, multi-environment diagnostic interface designed for professional use across a wide range of vehicle types. This single tool is capable of scanning cars, trucks, motorcycles, ATVs, UTVs, agricultural equipment, construction vehicles, and marine systems—making it one of the most versatile interfaces on the market.

With support for all major communication protocols—including RP1210, DoIP, J2534, J1939, and CAN FD—and a rugged IP53-rated housing, the TXT MULTIHUB 2 is ideal for professionals operating in varied and demanding conditions. It pairs seamlessly with TEXA’s IDC6 software platform to deliver smart connectivity, fast diagnostics, and modular capabilities that scale with your shop’s needs.

Specifications

Feature Details
Processor iMX6 1 GHz (Main), STM32H735IGK6 550 MHz (Co-Processor)
RAM 512 MB (Main), 2 MB SRAM + 32 MB SDRAM (Co-Processor)
Storage 8 GB eMMC
Operating System Linux (Stand-alone)
Display OLED 64×128 dot (backlit)
Power Supply 12–24 VDC via OBD or PWR 2.1 DC jack
Weight 600 g
Dimensions 176.1 × 175.4 × 46.8 mm
IP Rating IP53 (with sealed caps)

Features & Benefits

▶︎ Multi-Protocol Connectivity

Supports DoIP, CAN FD, K-Line, J2534, RP1210, and many more—making it compatible with nearly all modern vehicle communication networks.

▶︎ Ruggedized for Real-World Use

Rated for MIL-STD-810G transit drop testing and IP53 protection against water and dust. Operates reliably in shop, field, or mobile conditions.

▶︎ Multi-Environment Scanning

Scan and diagnose cars, trucks, bikes, marine, ag, off-highway, and powersports vehicles with one device. Auto-switches protocols as needed.

▶︎ Wireless Flexibility

Dual wireless configuration:

  • Station Mode: Connects via shop WiFi or smartphone hotspot.

  • Hotspot Mode: Direct point-to-point Wi-Fi to a tablet when shop connection is unavailable.

▶︎ Visual Feedback

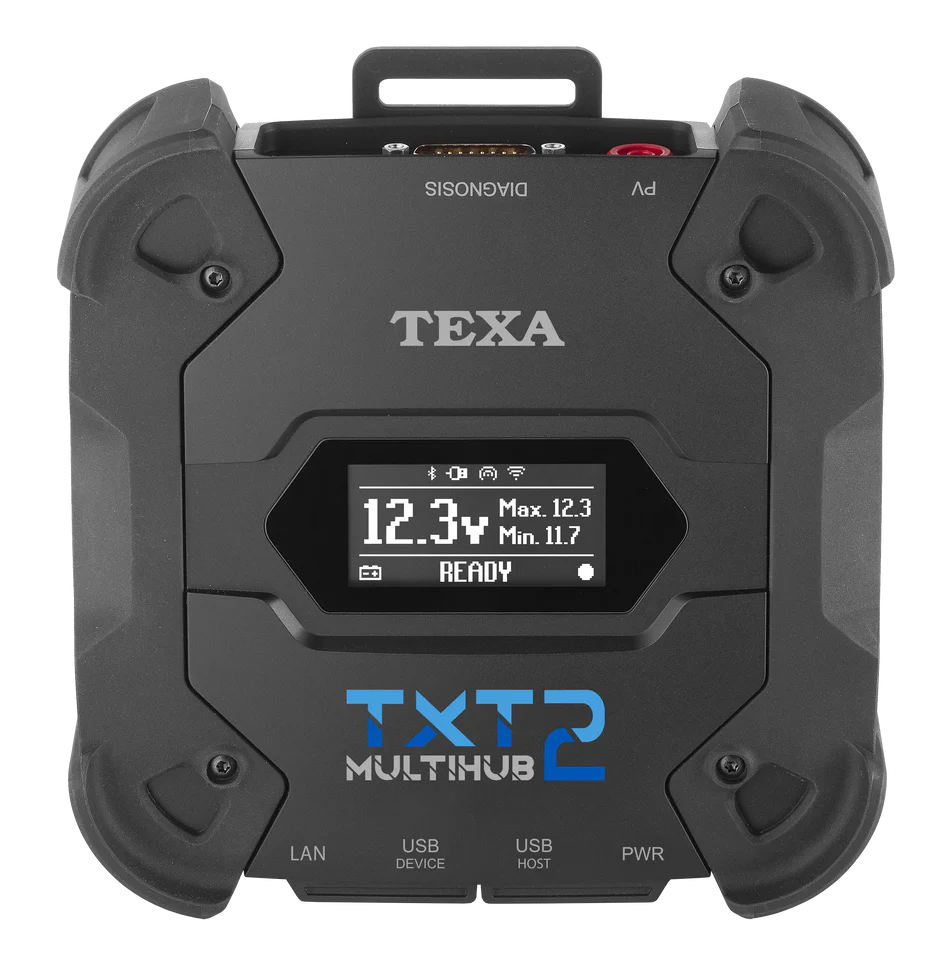

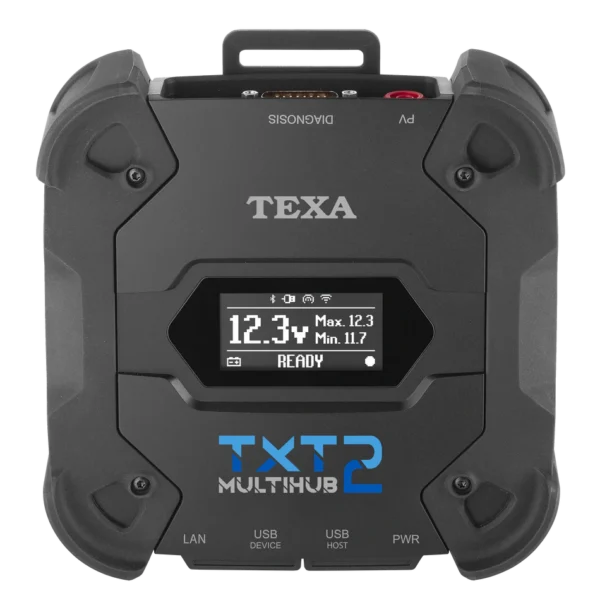

The OLED display provides instant diagnostic status, voltage readings, and connectivity confirmation—perfect for module programming or troubleshooting unstable vehicles.

▶︎ IDC6 Software Integration

Pairs with TEXA’s IDC6 diagnostic software for full-function diagnostics, coding, resets, and live data visualization.

What’s Included

🧰 TEXA Navigator TXT MULTIHUB 2 Interface
🧰 Integrated OLED Backlit Display
🧰 Built-in WiFi, Bluetooth 5.0, Ethernet, USB
🧰 PWR and USB connection cables
🧰 Protective end caps (IP53 compliant)
🧰 User guide + Technical documentation
🧰 Access to TEXA IDC6 (sold separately)

🚗 Vehicle Compatibility

▶︎ Passenger Cars (All OEMs supported via IDC6)
▶︎ Medium/Heavy Duty Trucks
▶︎ Motorcycles / Scooters / ATVs
▶︎ Agricultural Equipment
▶︎ Marine Engines / Jet Skis
▶︎ Construction Equipment
▶︎ UTVs / Off-Highway

Note: Vehicle coverage depends on active IDC6 license modules.
